Cinch® Level Rail Panels
Set Posts. Drop Panels. Done.
Cinch Level Rail Panels are the foundation of the easiest railing install in the game. Every panel arrives fully welded, powder-coated, and ready to mount — with brackets already attached. No measuring. No pre-drilling. No attaching 47 tiny brackets while balanced on a stepladder. Just set your posts, slide in the panels, and secure. Your deck railing is literally done.
Pre-Welded Brackets
Factory-welded level brackets on every post assembly mean zero on-site bracket attachment. Fasteners included — just mount and go.
14-Gauge Steel Posts
Heavy-gauge galvanized steel construction delivers serious structural strength with superior corrosion resistance for years of worry-free performance.
15-Year Warranty
Cinch backs every panel and post with a 15-year residential warranty covering cracking, blistering, peeling, corrosion, and abnormal fading.
Choose Your Color
Both finishes feature Cinch's textured satin powder coat — engineered to hide fingerprints and resist UV fading.
Satin Black
Deep, rich black with a textured satin powder coat — the most popular choice. Versatile enough for any deck color or architectural style.
Request a QuoteClick each color to explore
Posts, Panels & Accessories
Everything you need to build a complete railing — from corner posts to end caps.
Level Rail Panels
Factory-assembled panels with square balusters. 5/8" diameter, 18-gauge steel balusters with 1" top and bottom rails.
- 34" height: 6', 8', 10' lengths
- 40" height: 6', 8' lengths
- Max span: 8' between posts
Post Assemblies
Available in 2" x 2" and 3" x 3" sizes. End, Mid, and Corner configurations with pre-welded brackets.
- 40" and 44" standard heights
- 46" and 48" blank posts
- 52" fascia mount posts
- Post cap and skirt included
Accessories
Complete your installation with aluminum lineals, joiners, returns, and bracket kits.
- 1½" aluminum lineals (80", 104", 120")
- 90° corners — no miter cuts needed
- Internal & external joiners
- Wall returns & 180° return loops
Technical Details
| Specification | Details |
|---|---|
| Material | Heavy-gauge galvanized steel |
| Post Gauge | 14-gauge steel |
| Rail Gauge | 15-gauge steel (1" top and bottom rails) |
| Balusters | 5/8" diameter, 18-gauge steel |
| Panel Heights | 34" and 40" |
| Panel Lengths | 6', 8', and 10' (max span 8') |
| Post Sizes | 2" x 2" and 3" x 3" |
| Post Heights | 40", 44", 46", 48", 52" (fascia) |
| Colors | Satin Black, Satin Bronze |
| Finish | Textured satin powder coat |
| Top Rail | Accepts wood or composite top rail caps |
| Wild Hog Compatible | Yes — 6' and 8' rail kits available |
| Warranty | 15-year residential / 10-year commercial |

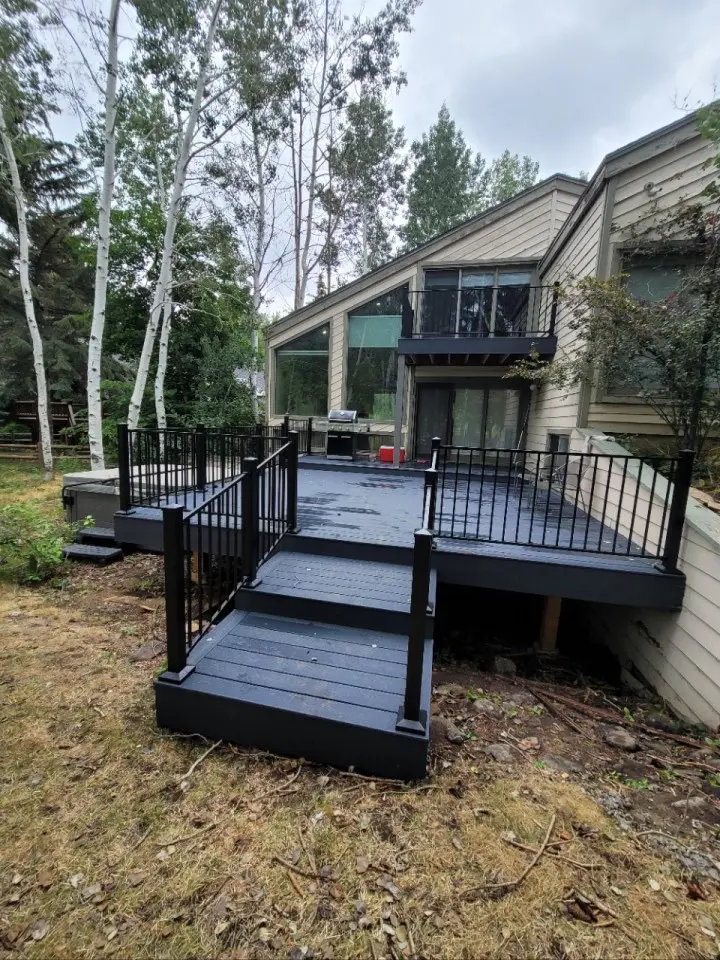

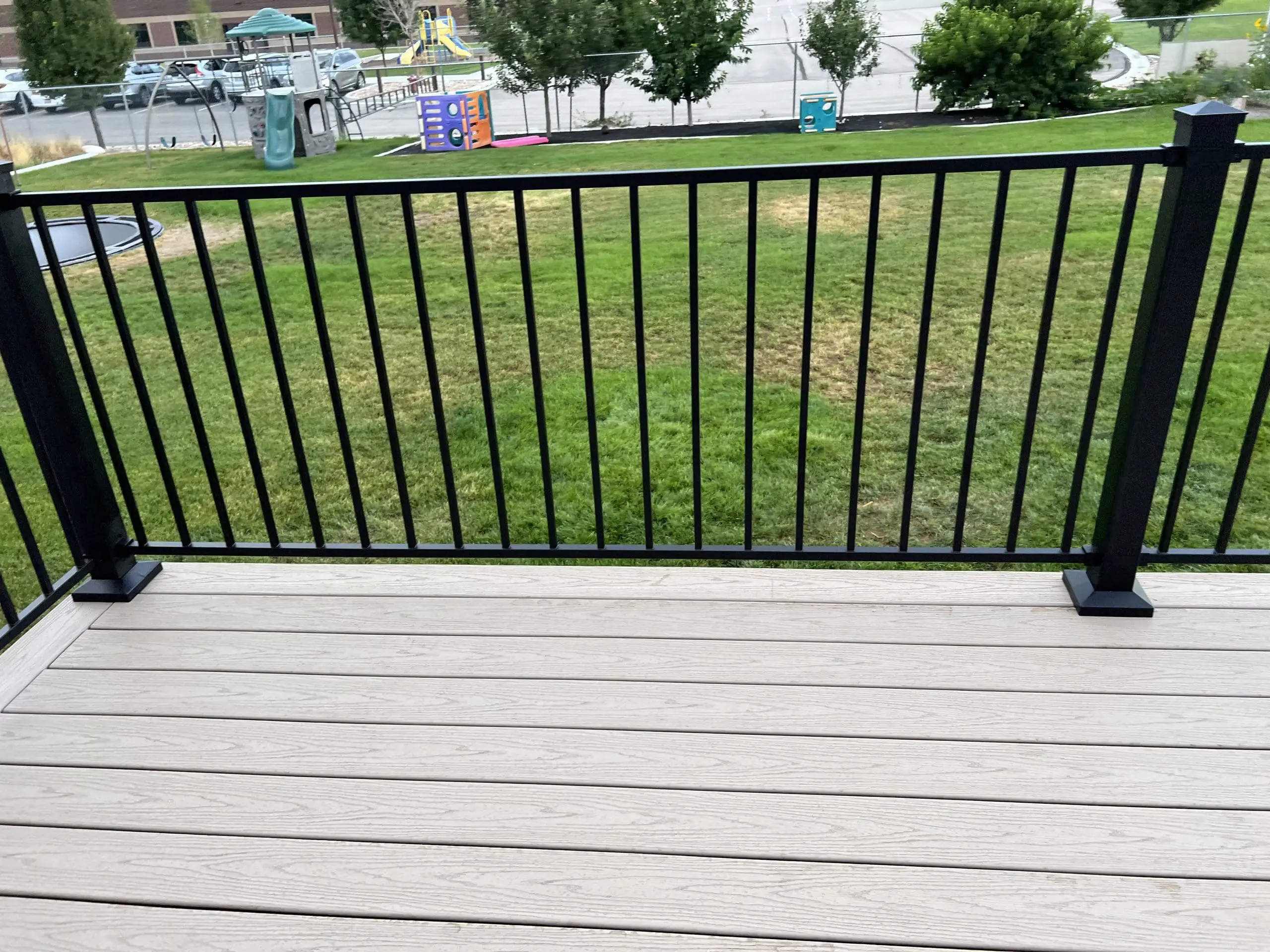

See It Installed
Level Rail Panel FAQ
What sizes do Cinch Level Rail Panels come in?
Cinch Level Rail Panels are available in two heights (34" and 40") and three lengths (6', 8', and 10'). The 10' panels are designed for at-grade use or to be cut to lengths of 8' or shorter — maximum span is 8 feet between posts.
What post sizes are available?
Cinch offers both 2" x 2" and 3" x 3" post assemblies. Posts come in End, Mid, and Corner configurations with factory-welded brackets, or as Blank posts where brackets are sold separately. Heights range from 40" to 52" depending on the configuration.
Do I need to buy brackets separately?
Not for most installations. End, Mid, and Corner post assemblies come with factory-welded level brackets, fasteners, post cap, and post skirt — all included. Blank posts and fascia mount posts require brackets sold separately for maximum flexibility.
Can I install Cinch Railing on stairs?
Yes — Cinch makes dedicated Stair Rail Panels with pivoting brackets designed for angled installations. Available in 34" and 40" heights, in 6' and 8' lengths. Stair bracket kits are also available for custom angles.
What is the maximum span between posts?
The maximum span between posts is 8 feet. While 10' panels are available, they're designed for at-grade applications or to be cut to 8' or shorter for elevated deck use.

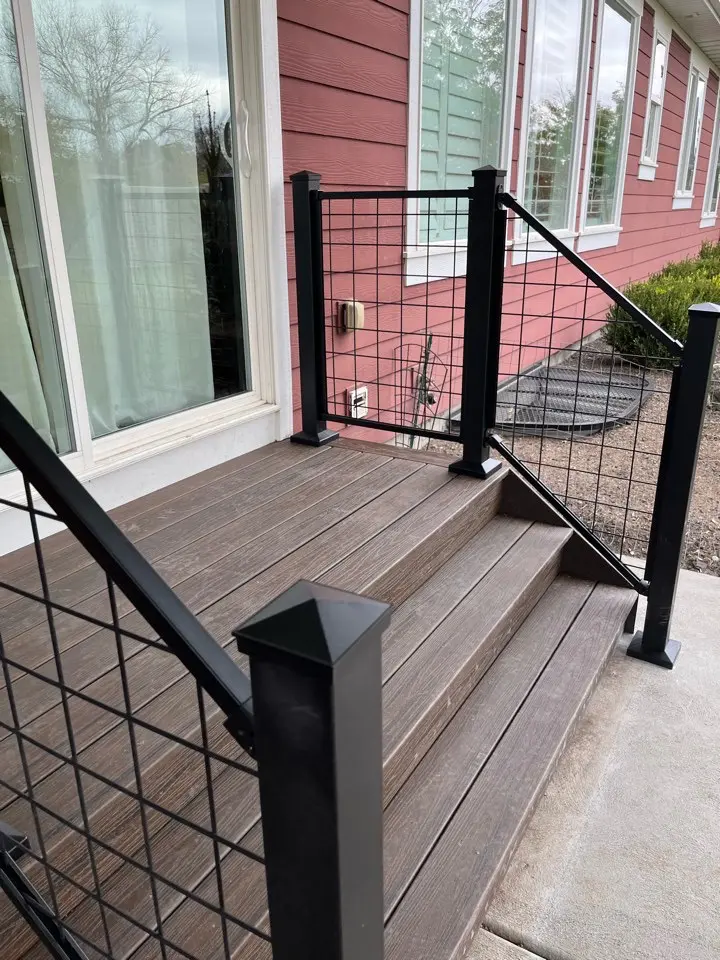

Can I use Cinch posts with Wild Hog mesh panels?
Absolutely. Cinch offers Wild Hog Rail Kits in 6' and 8' widths that pair Cinch posts with 316 stainless steel marine-grade Wild Hog mesh panels. The textured black finish matches Cinch posts perfectly.
